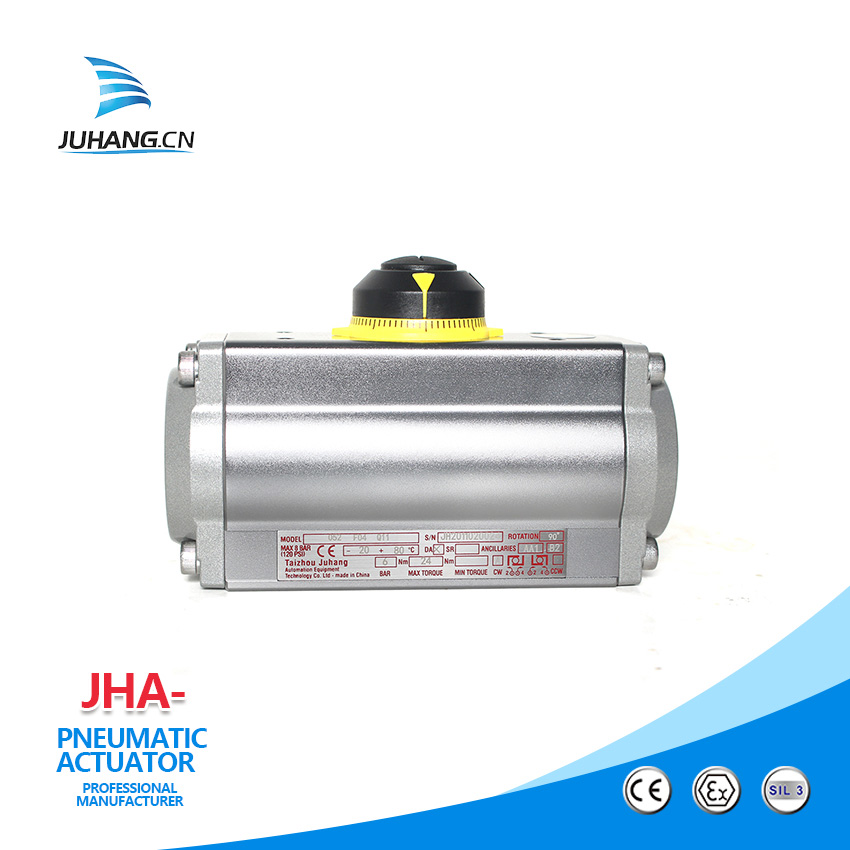

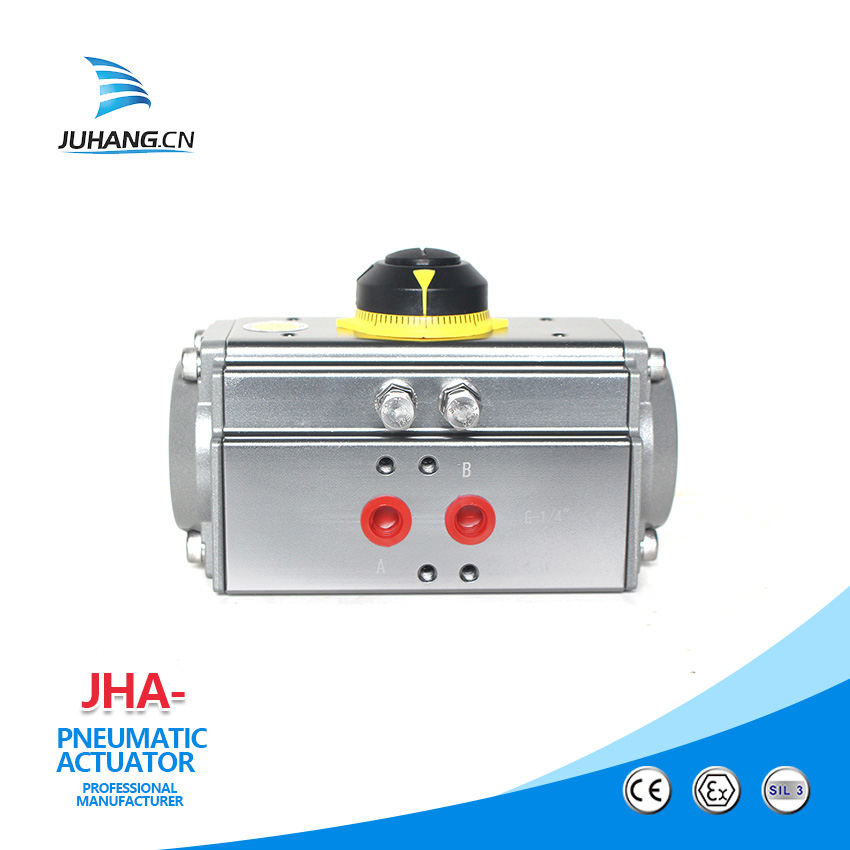

Rotary Pneumatic Actuator :high quality, low friction, long life, high stability. JHA series rotary pneumatic pneumatic actuators integrate a variety of advanced technologies, can face the challenges of various harsh environments, its outstanding reliability and safety can meet your strict requirements for automatic control.

Send Inquiry

Product Description

1.Product Introduction

Rotary Pneumatic Actuator is compressed air as the power, through the linear motion of the piston rack drives the output shaft gear transmission.Rotary Pneumatic Actuator to corner the itinerary of the output widely used in ball valve,butterfly valve, plug valves and other angle stroke valve switch and adjustment, also can be applied to other rotary occasions, is the ideal device to realize pipeline automation control

2. Product Parameter (Specification)

Model:JHA0012 DA - JHA8000 DA
Output torque:8 N.m - 10000 N.m
Structure:Rack and pinion structure
Application:Ball valve, butterfly valve, plug valve and other valv
Air Supply Pressure:3 - 8 bar
Cylinder body material:Aluminum alloy (surface coating: hard anodized)
End cover material:Die-casting aluminum alloy (surface coating: powder spraying)
Air source control:Through filtered compressed air, no need lubricate oil,the oil must suit for NBR under lubricated condition.
Applicable ambient temperature:Standard -20℃~80℃
Low temperature -40℃~80℃
High temperature -15℃~120℃
Flange standard:ISO 5211
Rotate stroke:0 - 90°(+/-5°)
Service life:Maintenance-free and low friction , switch service life more than 1 million times.

3.Product Features

Rotary Pneumatic Actuatorhave the below characteristics:
●Structure : compact rack and pinion pneumatic actuator.
●Low friction ,long service life and the switching times up to 1000,000 times.
●Applied to angular stroke valves, ball valves, butterfly valves, plug valves and other valves.
●Mounting flange in accordance to DIN/ISO5211,control valve with NAMUR standard.
●High quality aluminum alloy material, surface coating by hard anodized , hard nodized+Teflon and other options for special demands and requirements .
●Certificate obtained : ATEX, CE, SIL3, ISO9001:2015 certificate.
●High-end products, excellent quality, complete certification system.
●All products in the factory undergo a rigorous testing, each individual is marked with tracking code for quick identification and complete tracking service.

4.Product Details

The top of the Rotary Pneumatic Actuator conforms to VDI/VDE3845 standard installation,which is convenient for installation of positioner,limit switch, and other accessories.

The bottom mounting surface (valve connection surface) is designed in accordance with ISO5211 standard. It can be directly installed on manual override or valve.

5.Factory Workshop

Juhang has advanced processing equipment, high-precision CNC machines, four-axis machining center and advanced technology, which can guarantee the high quality of precision products.The company also has laboratories for high-precision testing instruments.Sophisticated technology and strict quality management system, furthermore gathering professional technical elites and world-leading technology team, taking advantages of new technology, new processing and new materials to ensure the stability and reliability of our products.

6.Quality Inspection

Juhang has a strict inspection system, the most advanced inspection equipment and strict scientific management, so that each product from Juhang can meet various customer’s selection and requirements.

7.Company Certification



Q:If I am interested in your pneumatic actuator,when i can received your quotation.
A:All your inquiries will be answered within 24 hours.

Q: Can the surface color of the Rotary Pneumatic Actuator be customize
A: Yes. We can customize most colors for you.

Q: Is it possible to customize the size of the air inlet and outlet of the Rotary Pneumatic Actuator?
A: Yes. You can choose such as G thread, NPT thread, etc.

Q: What certificates do you have for your products?
A: We have obtained CE, SIL3, ATEX, IOS9001 and other certifications issued by many internationally renowned certification bodies.

Q: How to deliver? Because I'm really in a hurry!
A: Contact us and tell us your situation clearly. We will do our best to solve your difficulties.
