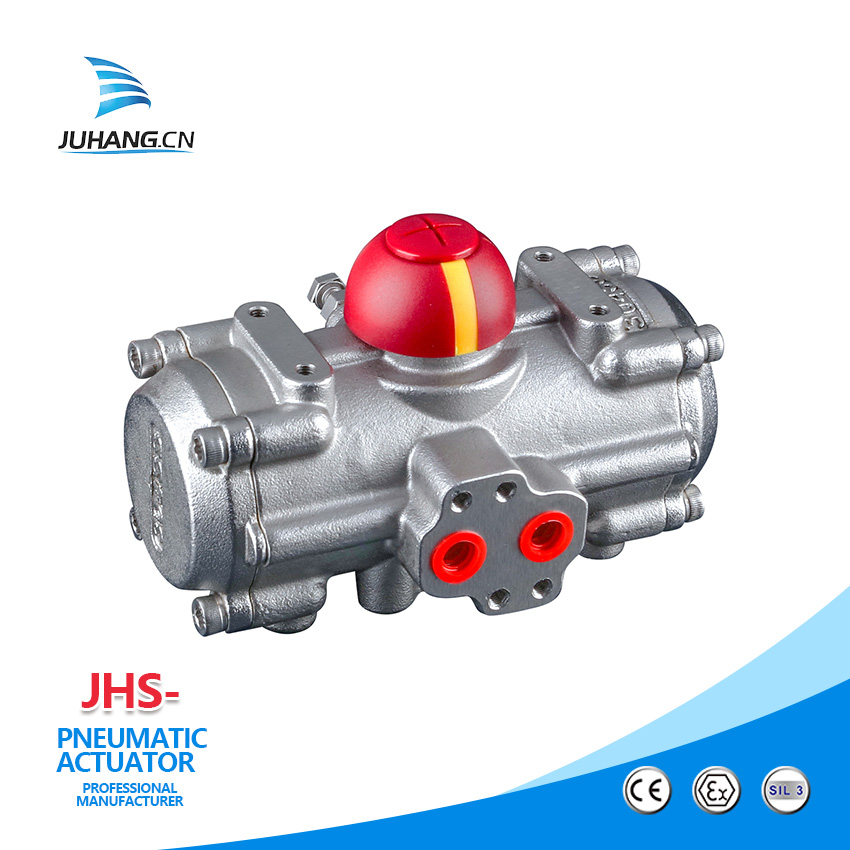

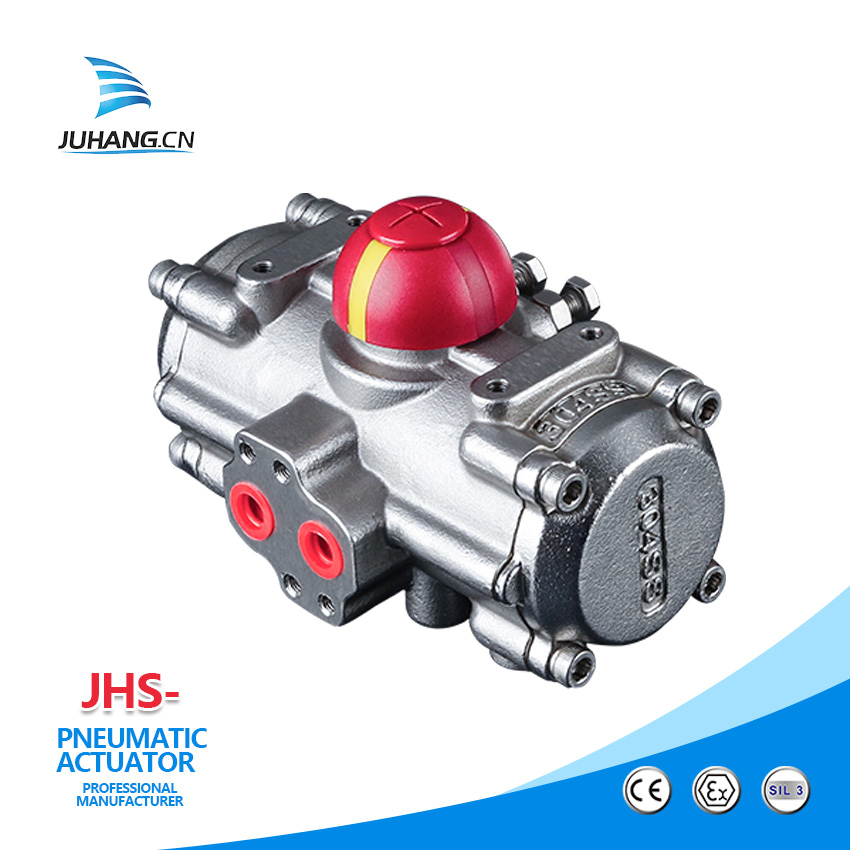

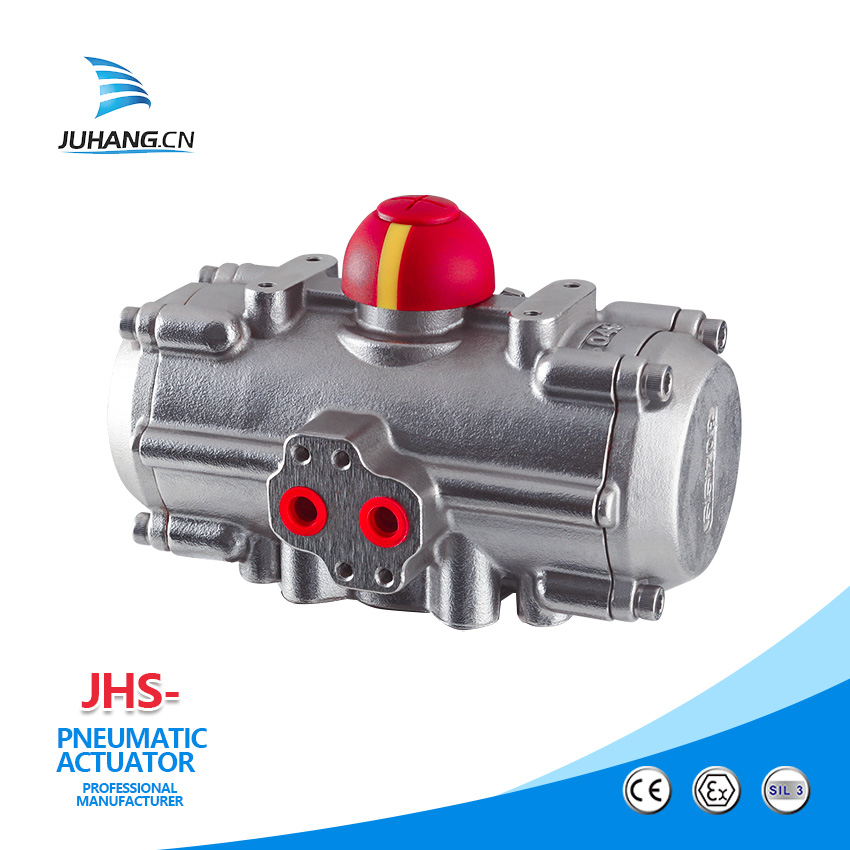

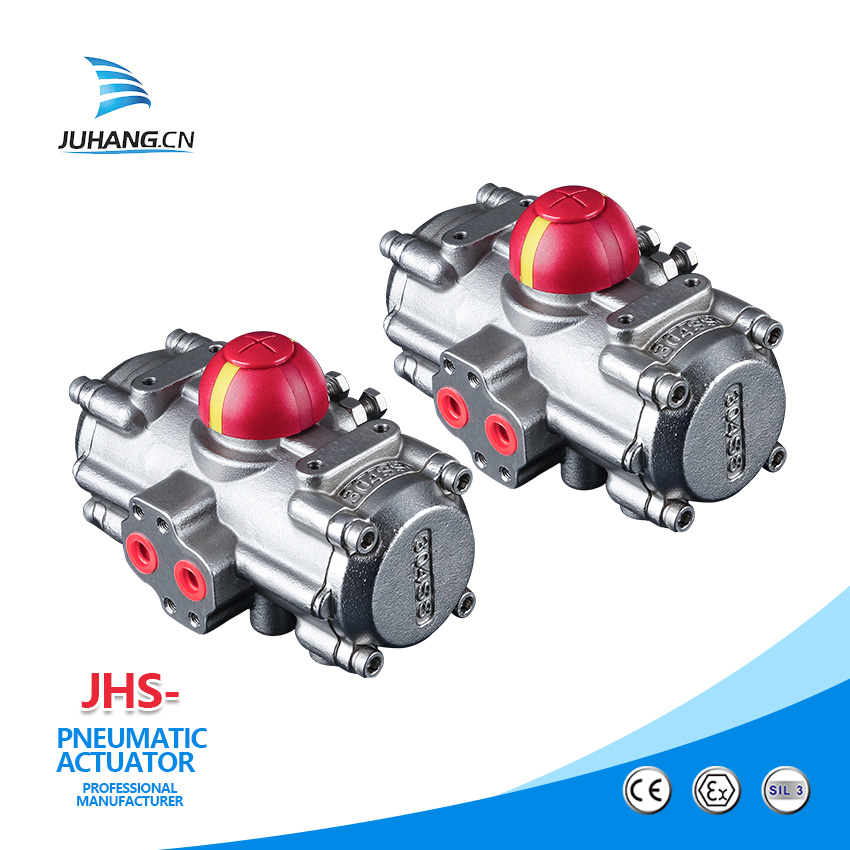

Double Acting Stainless Steel Pneumatic Actuator

Double acting stainless steel pneumatic actuator, through the CAD 3d model innovative optimization design, beautiful appearance ,compactness, modernization ;The utility of model material and new process are adopted to make the quality and performance of the product more reliable.

Send Inquiry

Product Description

1.Product Introduction

Double acting stainless steel pneumatic actuator, with higher corrosion resistance, provides more options for special using environments


2. Product Parameter (Specification)

Model:JHS52-JHS210 DA
Structure:Rack and pinion structure
Application: ball valve, butterfly valve, plug valve and other valves
Supply Pressure Air: 3 - 8 bar
Output torque:1 N.m - 1600 N.m
Cylinder body material:Stainless steel.
Control air source:Through filtered compressed air, no need lubricate oil,the oil must suit for NBR when in lubricated condi
Flange standard:ISO 5211 / DIN3337
Operating temperature: Standard -20℃~80℃
Low temperature -40℃~80℃
High temperature -20℃~120℃
Rotate stroke:0 - 90°(+/-5°)


3.Product Features

Double acting stainless steel pneumatic actuator have the below characteristics:
●Structure: compact rack and pinion pneumatic actuator.
●Used for angular stroke valves, ball valves, butterfly valves, plug valves and other valves.
●Mounting flange in accordance to DIN/ISO5211,DIN3337,control valve with NAMUR standard.
●Cylinder body material:Stainless steel.
●Certificate obtained : ATEX, CE, SIL3, ISO9001:2015 certificate.
●High-end products, excellent quality, complete certification system.
●All products in the factory undergo a rigorous testing, each individual is marked with tracking code for quick identification and complete tracking service.


4.Product Details


5.Factory Workshop

Juhang has advanced processing equipment, high-precision CNC machines, four-axis machining center and advanced technology, which can guarantee the high quality of precision products.The company also has laboratories for high-precision testing instruments.Sophisticated technology and strict quality management system, furthermore gathering professional technical elites and world-leading technology team, taking advantages of new technology, new processing and new materials to ensure the stability and reliability of our products.


6.Quality Inspection

Juhang has a strict inspection system, the most advanced inspection equipment and strict scientific management, so that each product from Juhang can meet various customer’s selection and requirements.


7.Company Certification


8.Exhibition


9.FAQ

Q:If I am interested in your double acting stainless steel pneumatic actuator, when i can received your quotation.
A:All your inquiries will be answered within 24 hours.

Q:How do you control the quality for your double acting stainless steel pneumatic actuator?
A:We have complete testing methods and processes from raw materials to processing and assembly.

Q: What kinds of shipping methods do you have?
A: According to the actual situation, you can choose express, air, sea, and other methods.

Q: Is OEM acceptable?
A: Yes.
