120 135 180 Degree Pneumatic Actuator

120 135 180 degree pneumatic actuator, is adjustable to meet different customers’demands. Travel angle: 0°-180°, +-5° angular stroke adjustment.

Send Inquiry

Product Description

1.Product Introduction

contact us to get more information of 120 135 180 degree pneumatic actuator


2. Product Parameter (Specification)

Model:JHA0012 DA - JHA8000 DA
Output torque:8 N.m - 10000 N.m
Structure:Rack and pinion structure
Application:Ball valve, butterfly valve, plug valve and other valv
Air Supply Pressure:3 - 8 bar
Cylinder body material:Aluminum alloy (surface coating: hard anodized)
End cover material:Die-casting aluminum alloy (surface coating: powder spraying)
Air source control:Through filtered compressed air, no need lubricate oil,the oil must suit for NBR under lubricated condition.
Applicable ambient temperature:Standard -20℃~80℃
Low temperature -40℃~80℃
High temperature -15℃~120℃
Flange standard:ISO 5211 / DIN3337
Rotate stroke:0 - 180°(+/-5°)
Service life:Maintenance-free and low friction , switch service life more than 1 million times.


3.Product Features

120 135 180 degree pneumatic actuator have the below characteristics:
●Structure : compact rack and pinion pneumatic actuator.
●Low friction ,long service life and the switching frequency is up to 1000000 times.
●Applied to angular stroke valves, ball valves, butterfly valves, plug valves and other valves.
●Mounting flange in accordance to DIN/ISO5211,DIN3337,control valve with NAMUR standard.
●High quality aluminum alloy material, surface coating by hard anodized , hard nodized+Teflon and other options for special demands and requirements .
●Certificate obtained : ATEX, CE, SIL3, ISO9001:2008 certificate.
●High-end products, excellent quality, complete certification system.
●All products in the factory undergo a rigorous testing, each individual is marked with tracking code for quick identification and complete tracking service..

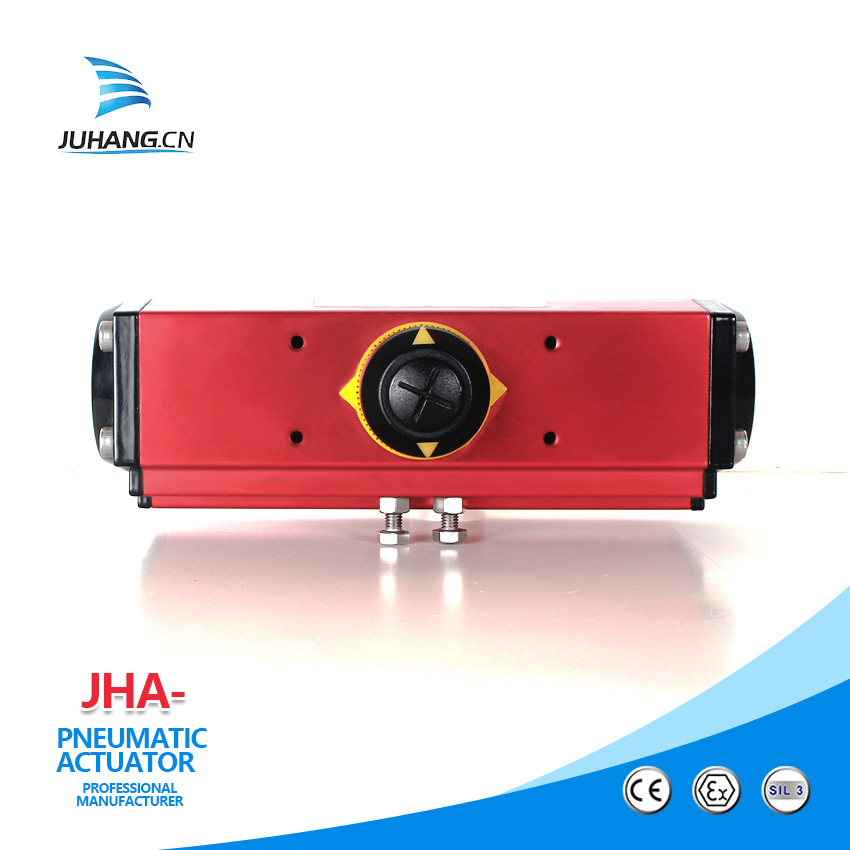

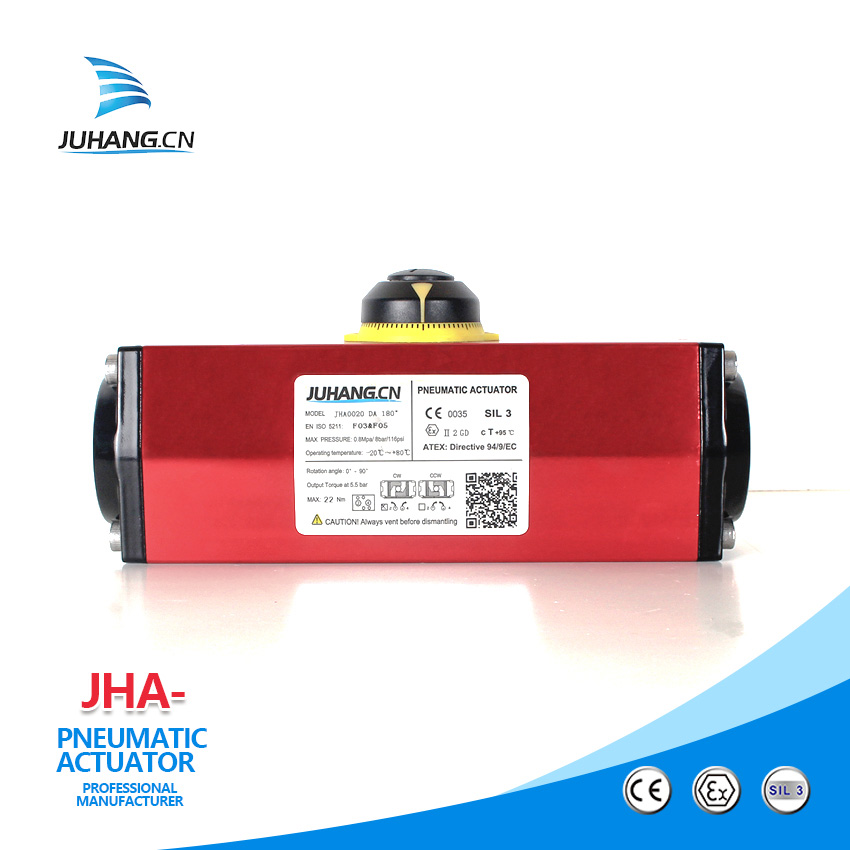

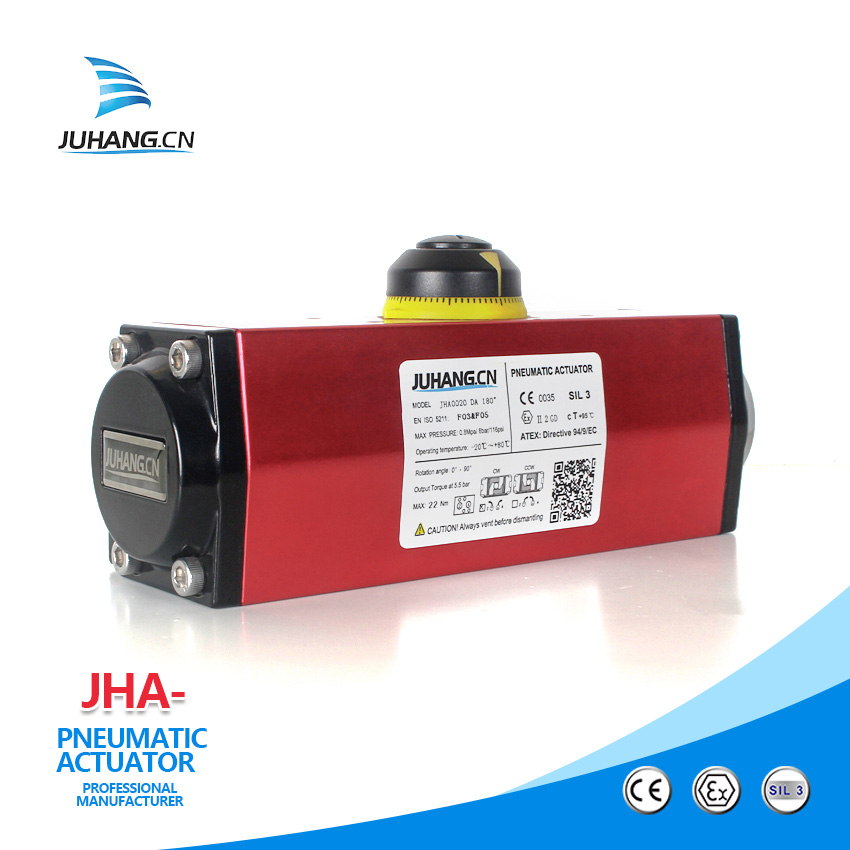

4.Product Details


5.Factory Workshop

Juhang has advanced processing equipment, high-precision CNC machines, four-axis machining center and advanced technology, which can guarantee the high quality of precision products.The company also has laboratories for high-precision testing instruments.Sophisticated technology and strict quality management system, furthermore gathering professional technical elites and world-leading technology team, taking advantages of new technology, new processing and new materials to ensure the stability and reliability of our products.


6.Quality Inspection

Juhang has a strict inspection system, the most advanced inspection equipment and strict scientific management, so that each product from Juhang can meet various customer’s selection and requirements.


7.Company Certification


8.Exhibition


9.FAQ

Q:If I am interested in your 120 135 180 degree pneumatic actuator,when i can received your quotation.
A:All your inquiries will be answered within 24 hours.

Q: Are you a manufacturer or a trading company?
A: We are manufacturers who have specialized in pneumatic actuators and gear operators for more than 20 years, in Taizhou, Zhejiang province, China.

Q: Can you produce according to the customer's own technical drawings
A: Yes, we offer personalized customization service.

Q: How to deliver? Because I'm really in a hurry!
A: Contact us and tell us your situation clearly. We will do our best to solve your difficulties.

Q: I would like to visit your factory, is it possible?
A: Of course, your visit is our honor.
